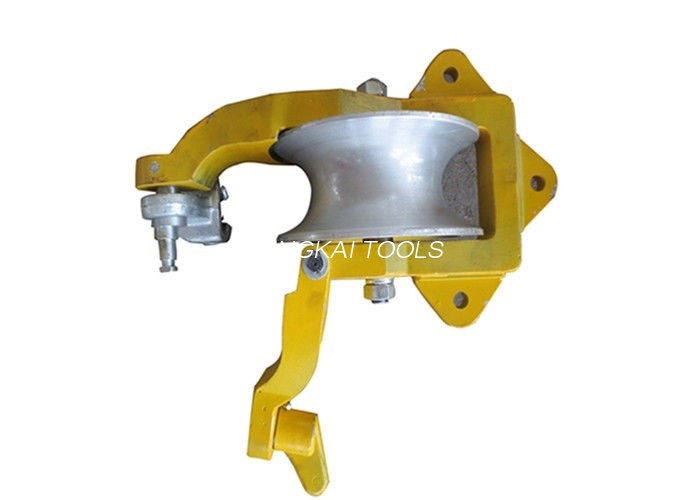

SH10TY 10 KN Conductor Stringing Equipment Cross Arm Universal Stringing Block

SH10TY 10 KN Conductor Stringing Equipment Cross Arm Universal Stringing Block
SH10TY 10 KN Conductor Stringing Equipment Cross Arm Universal Stringing Block SH10TY 10 KN Conductor Stringing Equipment Cross Arm Universal Stringing Block

Large Image :  SH10TY 10 KN Conductor Stringing Equipment Cross Arm Universal Stringing Block

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SH10TY
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Detailed Product Description
Model: SH10TY Name: Stringing Block
Load: 10kN Weight: 4.3kg
Apply: Stringing Conductor Wheel: Aluminum
High Light:

cable pulling tools

,

transmission tools and equipment

SH10TY 10kN Universal Stringing Block Crossarm For Overhead Line Stringing



Data Sheet

SH10TY 10kN Universal Stringing Block Crossarm For Overhead Line Stringing:rated load is 10KN, sheave diameter is 178mmX76mm, weight 4.3kg, applicable crossarm width of caliper is 99-175mm, height is 95-159mm,caliper weight is 1.6kg.

Item Numer 10295
Rated load(KN) 10
Sheave diameter(mm) 178x76
Weight(Kg) 4.3
Applicable crossarm width of caliper(mm) 99-175
Height(mm) 95-159
Caliper weight(kg) 1.6

Notes:SH10TY 10kN Universal Stringing Block Crossarm For Overhead Line Stringing

It is a versatile block,it either used in the head of insulartor string or fixed on the caliper of crossarm.

Versatile conductor stringing block that can be used in suspension utilizing a high strength, hot dipped galvanised socket connector; or used on crossarms using an adjustable crossarm bracket.

Features:SH10TY 10kN Universal Stringing Block Crossarm For Overhead Line Stringing

  • Adjustable to five positions using cross bracket that fits crossarms up to 125 x 150 mm
  • 100% positive locking spring loaded
  • Head pin assembly has large loop for hot stick operation
  • Light but extremely rugged
  • Sheave and crossarm bracket are permanent mould castings with heat treatment
  • Anti-friction ball bearings are lubricated for life of block under normal conditions
  • Neoprene and Urethane linings are available

Additional attachment options available on request.



SH10TY 10 KN Conductor Stringing Equipment Cross Arm Universal Stringing Block 0SH10TY 10 KN Conductor Stringing Equipment Cross Arm Universal Stringing Block 1

FAQ:

1. Are you a manufacturer or a trading company?
We are a professional fasteners manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.
2. Do you offer free samples?
We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.
3. Do you accept our design on products or boxes?
Yes. We accept customized design and we have a professional design team who can design products based on your requirements.
4. How long is your delivery time?
Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.
