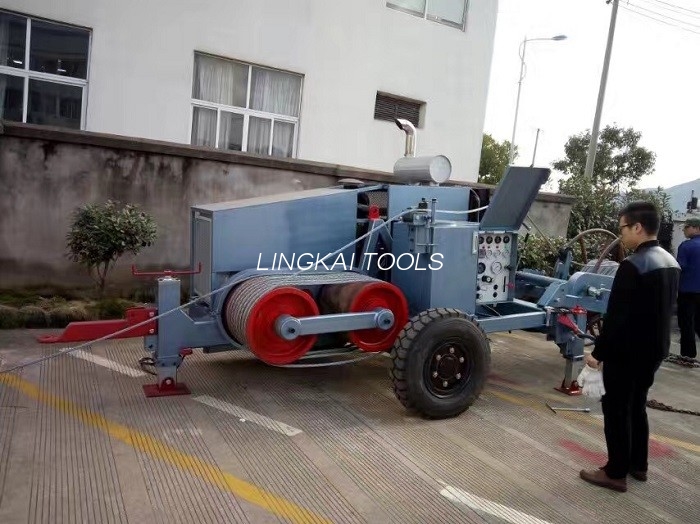

90KN Steel Cable Tensioner , SA-YQ90 Adjustable Speed Hydraulic Cable Tensioner

90KN Steel Cable Tensioner , SA-YQ90 Adjustable Speed Hydraulic Cable Tensioner
90KN Steel Cable Tensioner , SA-YQ90 Adjustable Speed Hydraulic Cable Tensioner 90KN Steel Cable Tensioner , SA-YQ90 Adjustable Speed Hydraulic Cable Tensioner

Large Image :  90KN Steel Cable Tensioner , SA-YQ90 Adjustable Speed Hydraulic Cable Tensioner

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YQ90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets / month
Detailed Product Description
Model: SA-YQ90 Name: Hydraulic Puller
Pull Force: 9T Continus Force: 8T
Max Speed: 5km/h Groove Number: 7
High Light:

hydraulic cable tensioner

,

conductor stringing machine

SA-YQ90 90KN steel Cable Tensioners Hydraulic Puller With Diesel Engine



Our SA-YQ90 Hydraulic Puller possesses the steplessly adjustable traction force and pulling speed, and the pull in the rope can be visually displayed on the line pull gauge. This equipment also comes with an overload automatic protection system. The maximum traction force can be preset. A reliable overhead protection mechanism makes this machine easy to be used.

Moreover, the spring applied hydraulically released brake can act automatically. Thus, the secure operation of our SA-YQ90 Hydraulic Puller can be well ensured, when the motor suddenly turns off or other reasons cause the hydraulic failure.

Thanks to the hydraulic type rope clamping device, it is easy to replace the steel wire rope reel. Additionally, our machine is equipped with the steel wire rope automatically winding device, which can automatically arrange the rope and also make loading and unloading convenient.

Detailed Parameters

SA-YQ90 90KN steel Cable Tensioners Hydraulic Puller With Diesel Engine

Model SA-YQ90 Hydraulic Puller
Maximum Traction Force (kN) 90
Continuous Tractive Effort (kN) 80
Maximum Pulling Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ520
Number of Bullwheel Grooves 7
Maximum Diameter of Suitable Steel Rope (mm) Φ21
Maximum Through Connector Diameter (mm) Φ60
Engine Power / Speed (kW/rpm) 121/2500
Dimensions (mm) 3500× 2100× 2500
Weight (kg) 4300

Main Components

SA-YQ90 90KN steel Cable Tensioners Hydraulic Puller With Diesel Engine

Engine Cummins (USA) water-cooled diesel engine
Main Variable Displacement Pump, Main Motor Rexroth (BOSCH)
Reducer Rexroth (BOSCH)
Main Hydraulic Valves Rexroth (BOSCH)
Radiator AKG
Hydraulic Instrument WIKA
Suitable Drum Model GSP1400 (order number: 07125C)
Option Cummins DONGFENG water-cooled diesel motor
(Model: YA-YQ90D, Item number: 07042)
