SH2 - OPGW1 Optical Fiber Cable Tools Fiber Cable Double Pulley Nylon Material

SH2 - OPGW1 Optical Fiber Cable Tools Fiber Cable Double Pulley Nylon Material
SH2 - OPGW1 Optical Fiber Cable Tools Fiber Cable Double Pulley Nylon Material SH2 - OPGW1 Optical Fiber Cable Tools Fiber Cable Double Pulley Nylon Material

Large Image :  SH2 - OPGW1 Optical Fiber Cable Tools Fiber Cable Double Pulley Nylon Material

Product Details:
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: 20123
Payment & Shipping Terms:
Minimum Order Quantity: 5sets
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/month
Detailed Product Description
Model: SH2-OPGW1 Item: Cable Double Pulley
Apply: Replace Ground Wire Use: OPGW Construction
Material: Nylon Weight: 2,4 Kg
High Light:

wire pulling tools

,

fiber optics tools and equipments

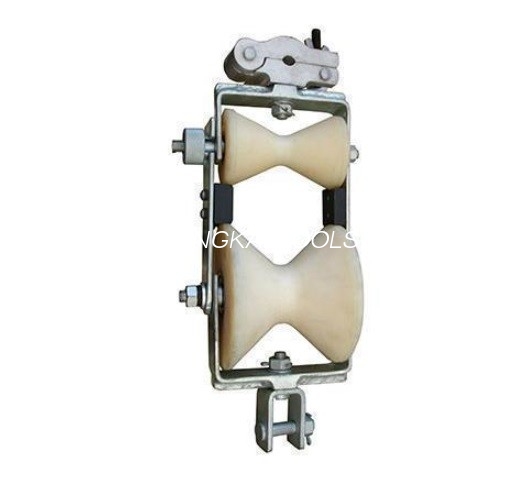

SH2- OPGW1 Cable Double Pulley Optical Fiber Cable Stringing Pulley


This device is specifically designed for replacement of an existing ground wire (G.W.) with OPGW (Optical Grounding Wire).
It is composed by two galvanized steel half frames linked by a ring with a swivel plate.
In each frame are fitted:
1. one grooved nylon roller with two ball bearings
2. three nylon plates to guarantee the OPGW protection
One side of each frame can be easily opened by a knurled nut.
The frame have been designed in order to avoid any contact of the OPGW with the steel part.

Our cable replacement double pulley serves to replace the overhead ground wire by OPGW operation.

Detailed Data

Item number 20123 20124
Model SH2-OPGW1 SH2-OPGW2
Rated load (kN) 2 2
Dimension (mm) 152×110×343 128×65×365
Weight(kg) 2.4 2.2

Use: OPGW Double pulley replacer is specially used for hot line OPGW changing project. It can be used for changing the old earth wire into OPGW cable. The sheaves are made of high strength MC nylon or aluminum. The frame is made of galvanized steel.

SH2 - OPGW1 Optical Fiber Cable Tools Fiber Cable Double Pulley Nylon Material 0

SH2 - OPGW1 Optical Fiber Cable Tools Fiber Cable Double Pulley Nylon Material 1

SH2 - OPGW1 Optical Fiber Cable Tools Fiber Cable Double Pulley Nylon Material 2SH2 - OPGW1 Optical Fiber Cable Tools Fiber Cable Double Pulley Nylon Material 3
