1000mm Diameter Underground Cable Tools Rotate Steel Plate Stand Upright Payout Drum Turntable

1000mm Diameter Underground Cable Tools Rotate Steel Plate Stand Upright Payout Drum Turntable
1000mm Diameter Underground Cable Tools Rotate Steel Plate Stand Upright Payout Drum Turntable 1000mm Diameter Underground Cable Tools Rotate Steel Plate Stand Upright Payout Drum Turntable 1000mm Diameter Underground Cable Tools Rotate Steel Plate Stand Upright Payout Drum Turntable

Large Image :  1000mm Diameter Underground Cable Tools Rotate Steel Plate Stand Upright Payout Drum Turntable

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO 9001
Model Number: SIW
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100pcs/day
Detailed Product Description
Item: 15133 Model: SIW-3B
Diameter: 1000mm Rated Load: 3000KN
Weight: 102KG Name: Cable Reel Stand
High Light:

cable pulling device

,

cable pulling accessories

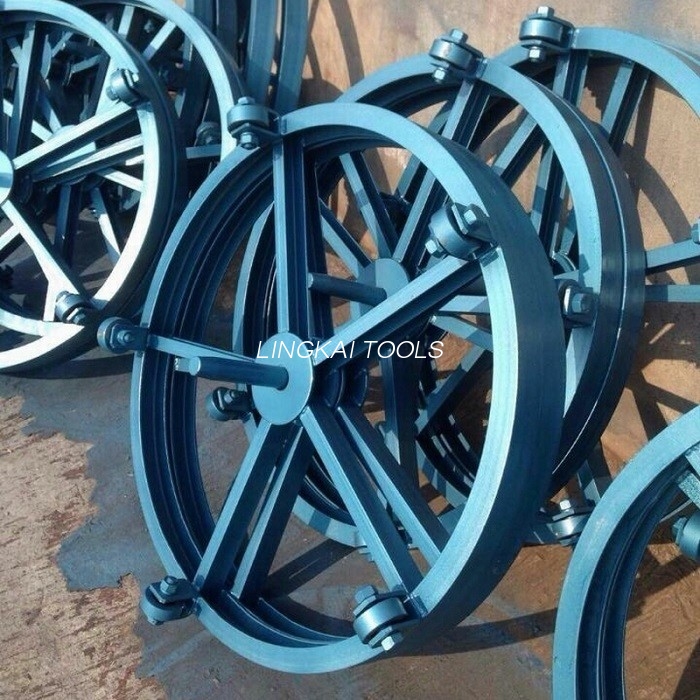

1000mm Diameter Automatically Rotate Steel Plate Stand / Upright payout Drum Turntable





Vertical Type Cable Reel Stand



Item number

Model

(MM)Diameter

Rated Load

(KG)

Weight

15131 SIW-1 Φ500 1000 36
15132 SIW-3A Φ800 3000 70
15133 SIW-3B Φ1000 3000 102
15135 SIW-5A Φ1500 5000 129





Steel Wire Drum Stand Cable Drum Support for Stringing Construction

Uses:During the construction of the line,the supporting cable reel is used for stringing construction.

Feature: When pulling the wire,the wire reel can rotate automatically.





Automatically Rotate Steel Plate Stand / Upright payout Drum Turntable

Model SIW Upright Payout Drum turntable is applicable to the placement of the cable tray, release the conductor wire, earth wire and cable.

15131,15132,15133, is with small cover slab, and 15135 is big cover slab
