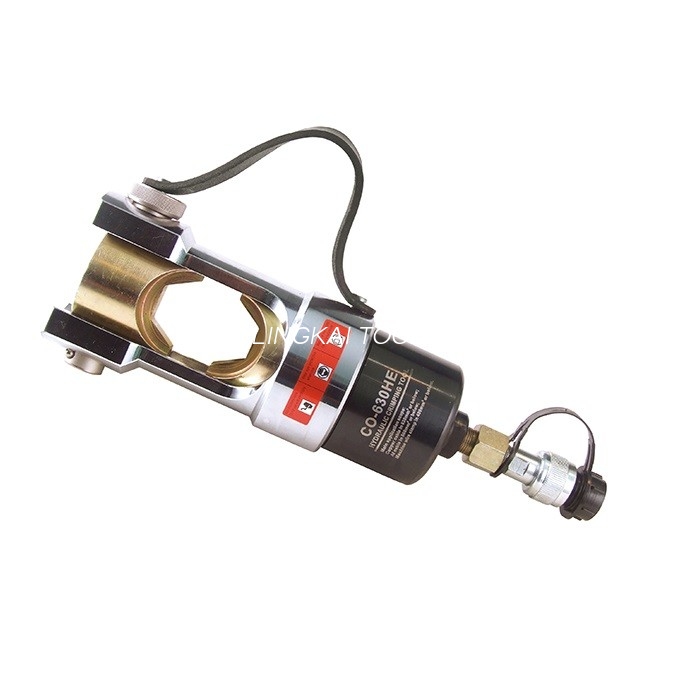

Split Heavy Duty Cable Lug 350KN Hydraulic Crimping Tool

Split Heavy Duty Cable Lug 350KN Hydraulic Crimping Tool
Split Heavy Duty Cable Lug 350KN Hydraulic Crimping Tool Split Heavy Duty Cable Lug 350KN Hydraulic Crimping Tool Split Heavy Duty Cable Lug 350KN Hydraulic Crimping Tool

Large Image :  Split Heavy Duty Cable Lug 350KN Hydraulic Crimping Tool

Product Details:
Place of Origin: ningbo
Brand Name: lingkai
Certification: ISO
Model Number: CO-630 A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets/month
Detailed Product Description
Model: CO-630 Crimping Force: 350KN
Crimping Range: 150-630mm2 Crimping Type: Hexagon Crimping
Height: 350mm Type: Split Type
High Light:

350kn hydraulic crimping tool

,

630mm2 hydraulic crimping tool

,

hydraulic cable lug crimping tool

CO-630B 300KN HYDRAULIC CABLE LUG AND CONNECTOR HEAVY DUTY CABLE LUG CRIMPING TOOL

Product Description

Split hydraulic crimping head can work with hydraulic pump

It is suit for crimping big size of lugs

It is suitable for outside and inside project of the distributor,it is the special tools for all kinds if connecting and building over head cable

SPECIFICATION

Item number 16101 16101A 16101B 16101C
Model CO-630B CO-630A CO-1000 CO-400

Crimping

force

300KN 350KN 550KN 200KN

Crimping

range

150-630mm² 150-630mm² 400-1000mm² 16-400mm²
Crimping

type

hexagon crimping hexagon crimping hexagon crimping hexagon crimping
Dies

150,185,240,300,

400,500,630mm²

150,185,240,300,

400,500,630mm²

400,500,630,

800,1000mm²

16,25,35,50,

70,95,120,150,

185,240,300,400mm²

Stroke 24mm 24mm 26mm 24mm
Heigth approx.275mm approx.350mm approx.400mm approx.250mm
Weight(KG)

approx.N.W11.5KG

G.W20KG

approx.N.W16.7KG

G.W25.5KG

approx.N.W32KG

G.W39KG

approx.N.W5.4KG

G.W10KG

Package wooden case wooden case wooden case paper box



Feature

1. It is suitable for outside and inside project of the distributor house, it is the special tools for all kinds of the connecting and building over head cable.

2. It pressed tightly on 10kv-500kv high voltage cable casing pipe, clips nared ends and hexagon shape.

3. The oil pipe coipler fitted with PT 3/8'' thread.

4.To be worked with pedal pump, manual pump and electric driven hydraulic pump.
